| Management number | 231080380 | Release Date | 2026/06/18 | List Price | $19.60 | Model Number | 231080380 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

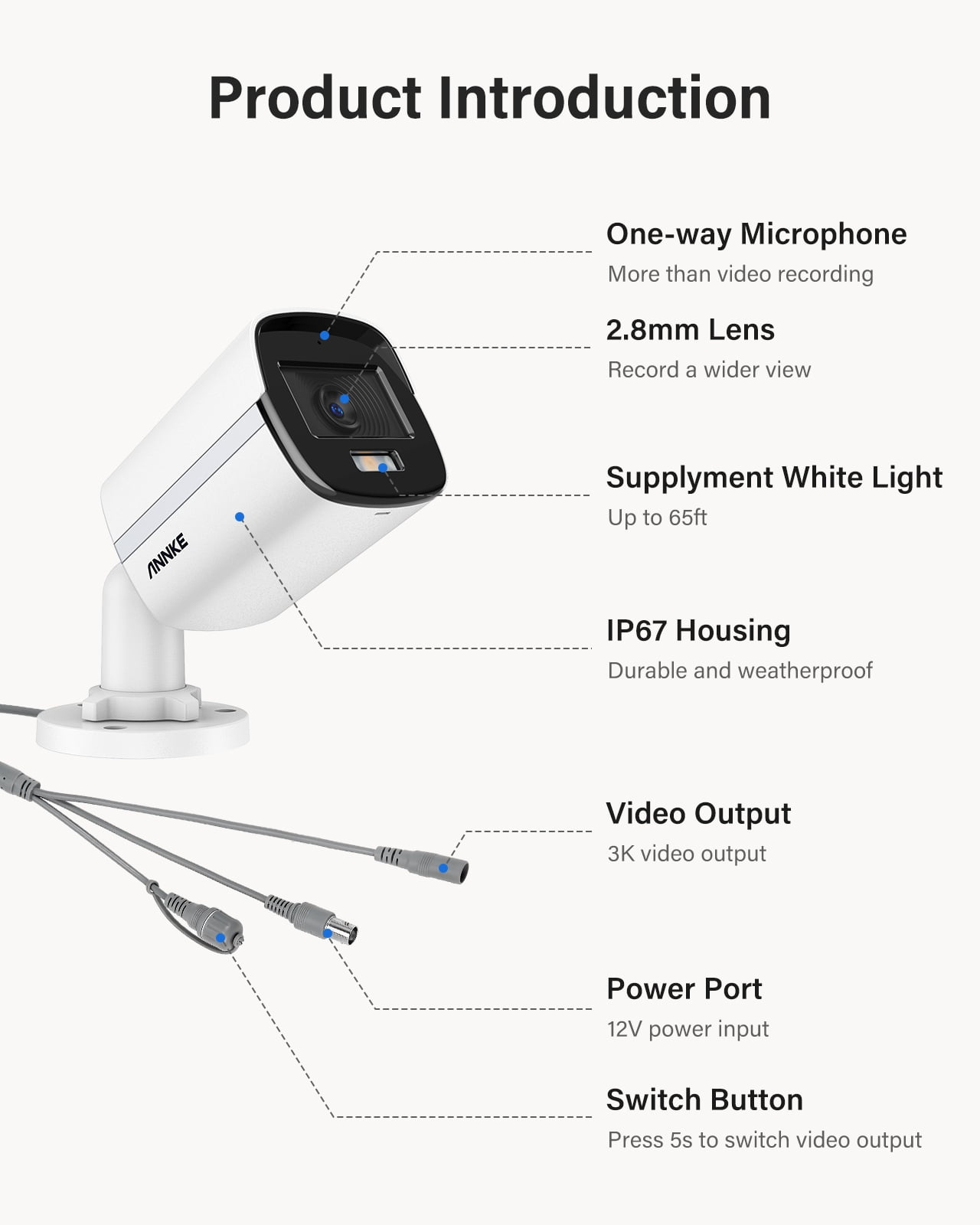

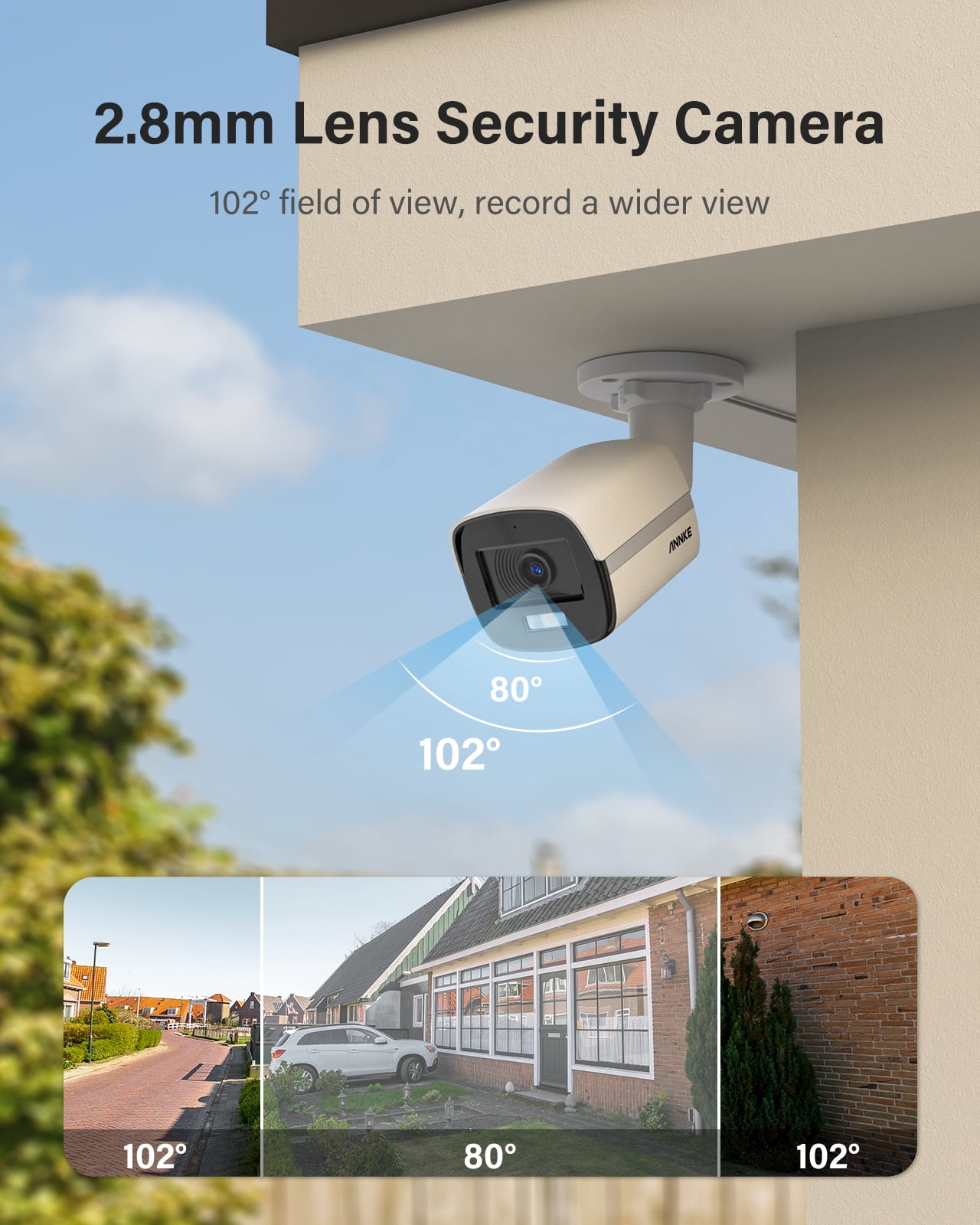

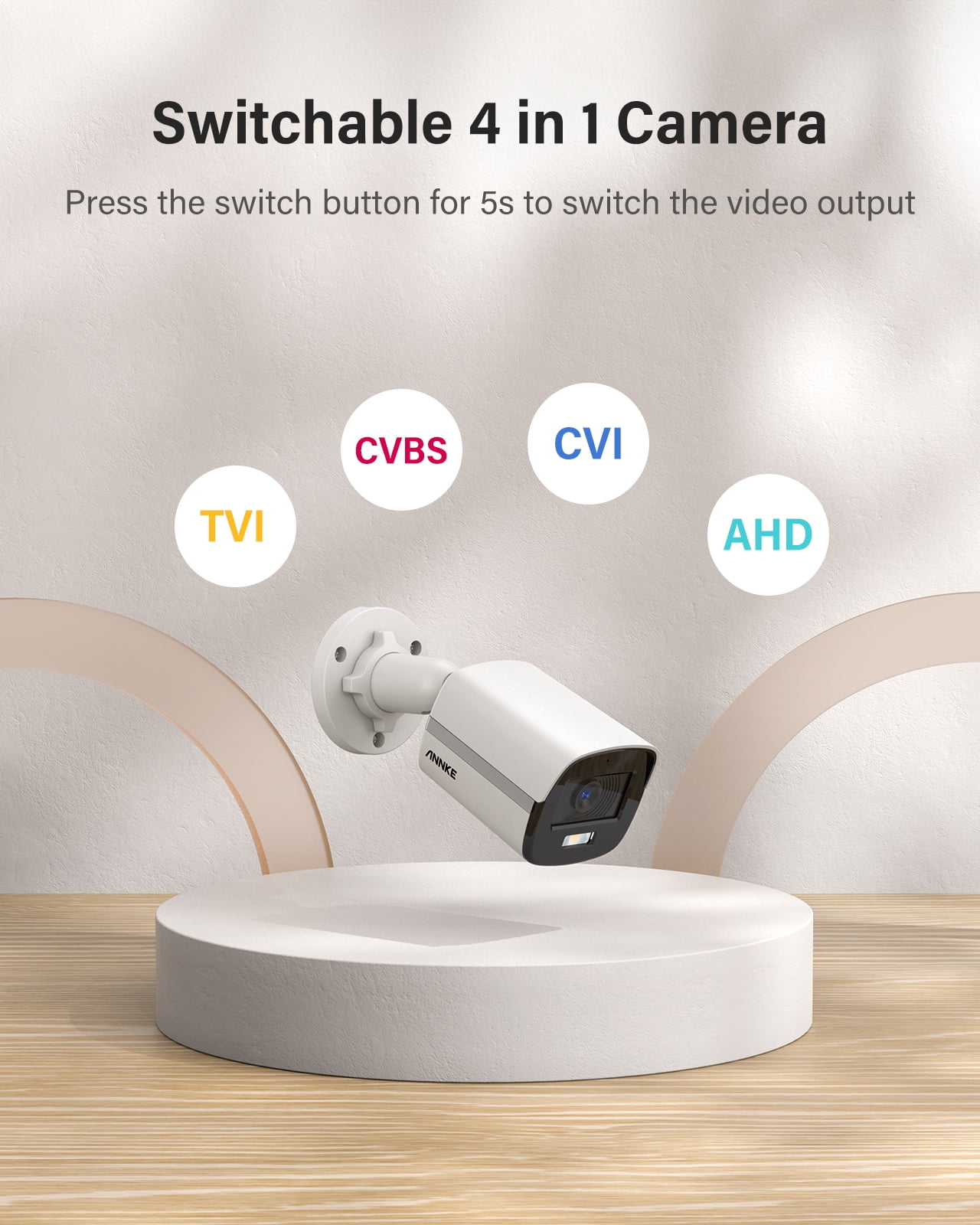

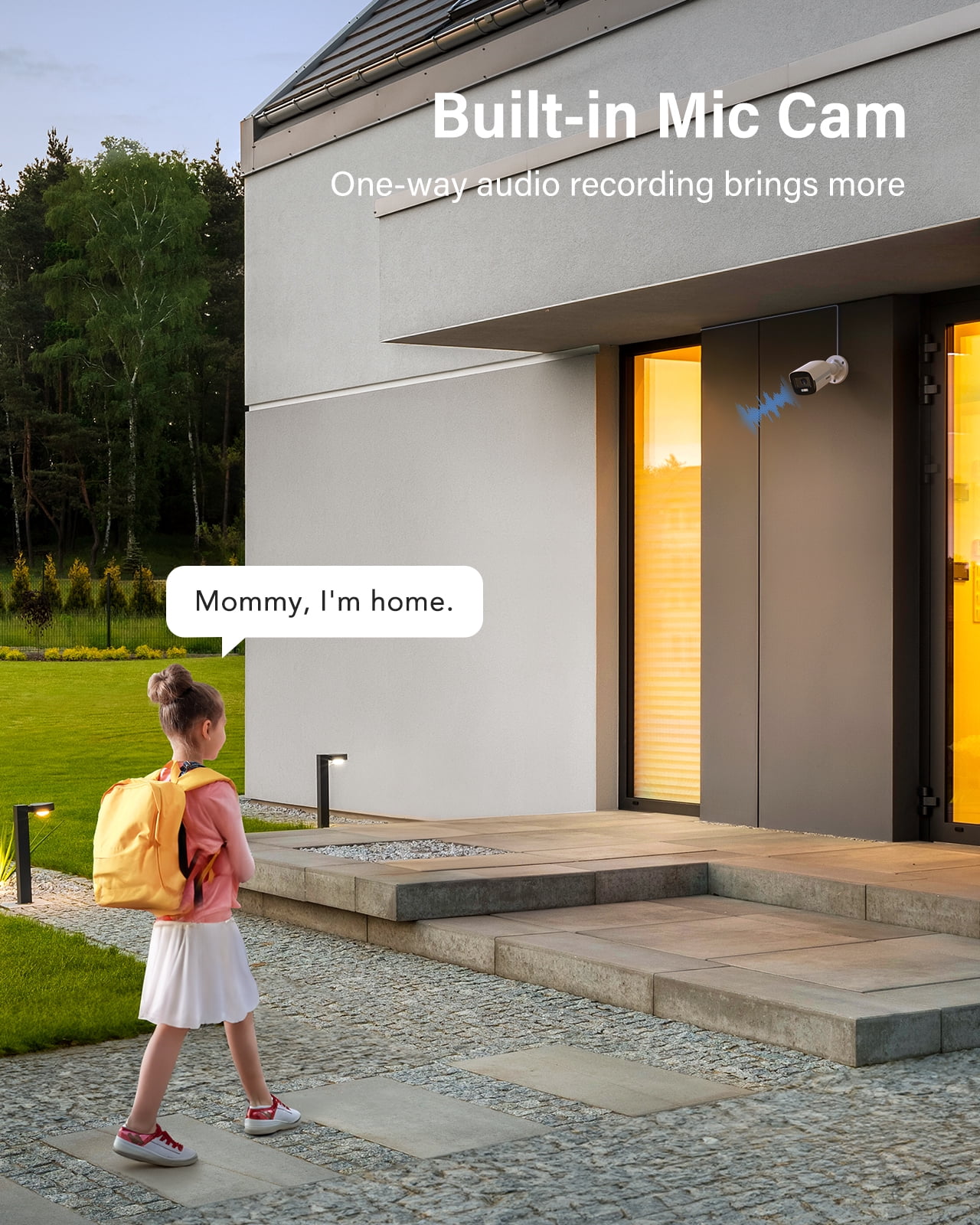

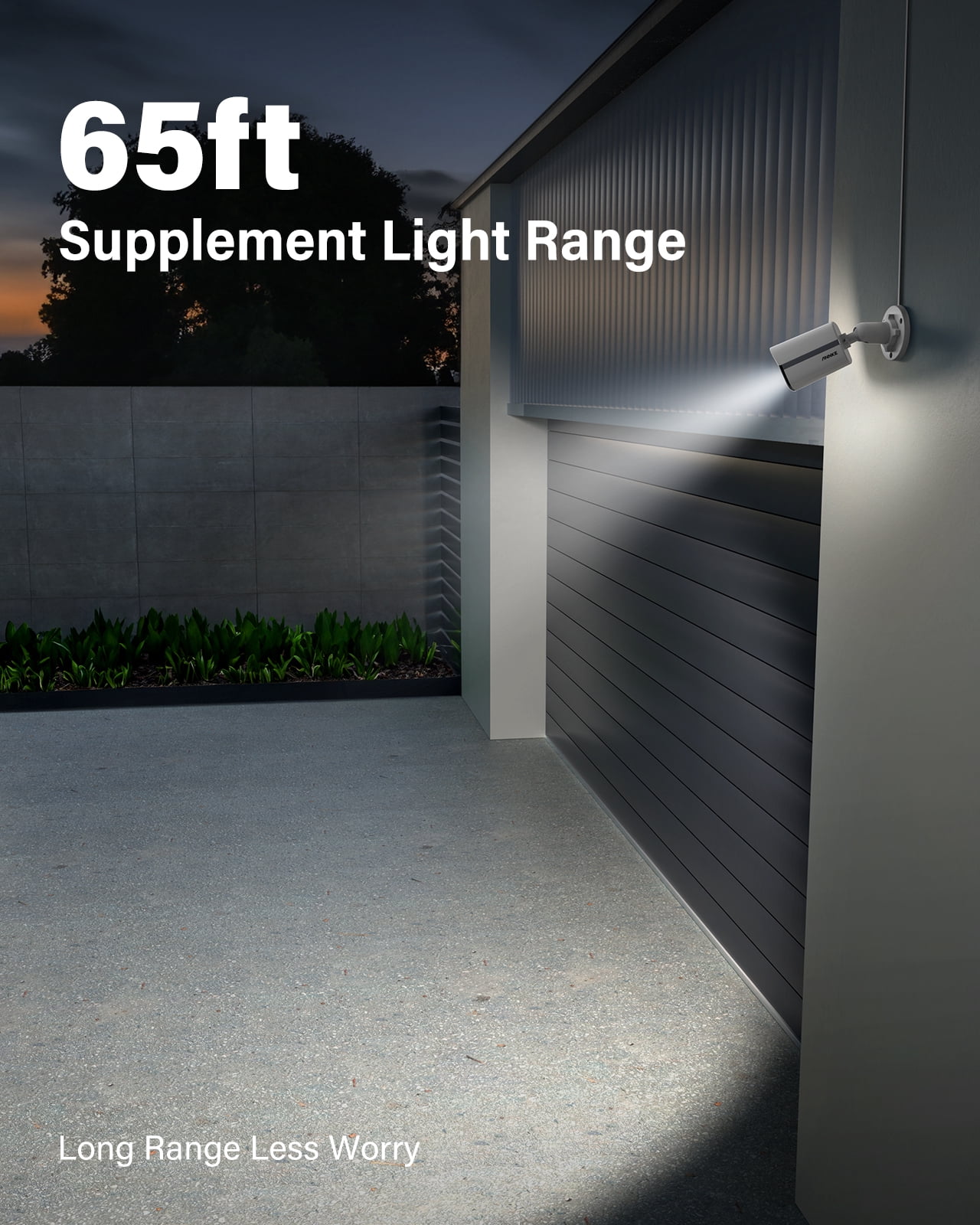

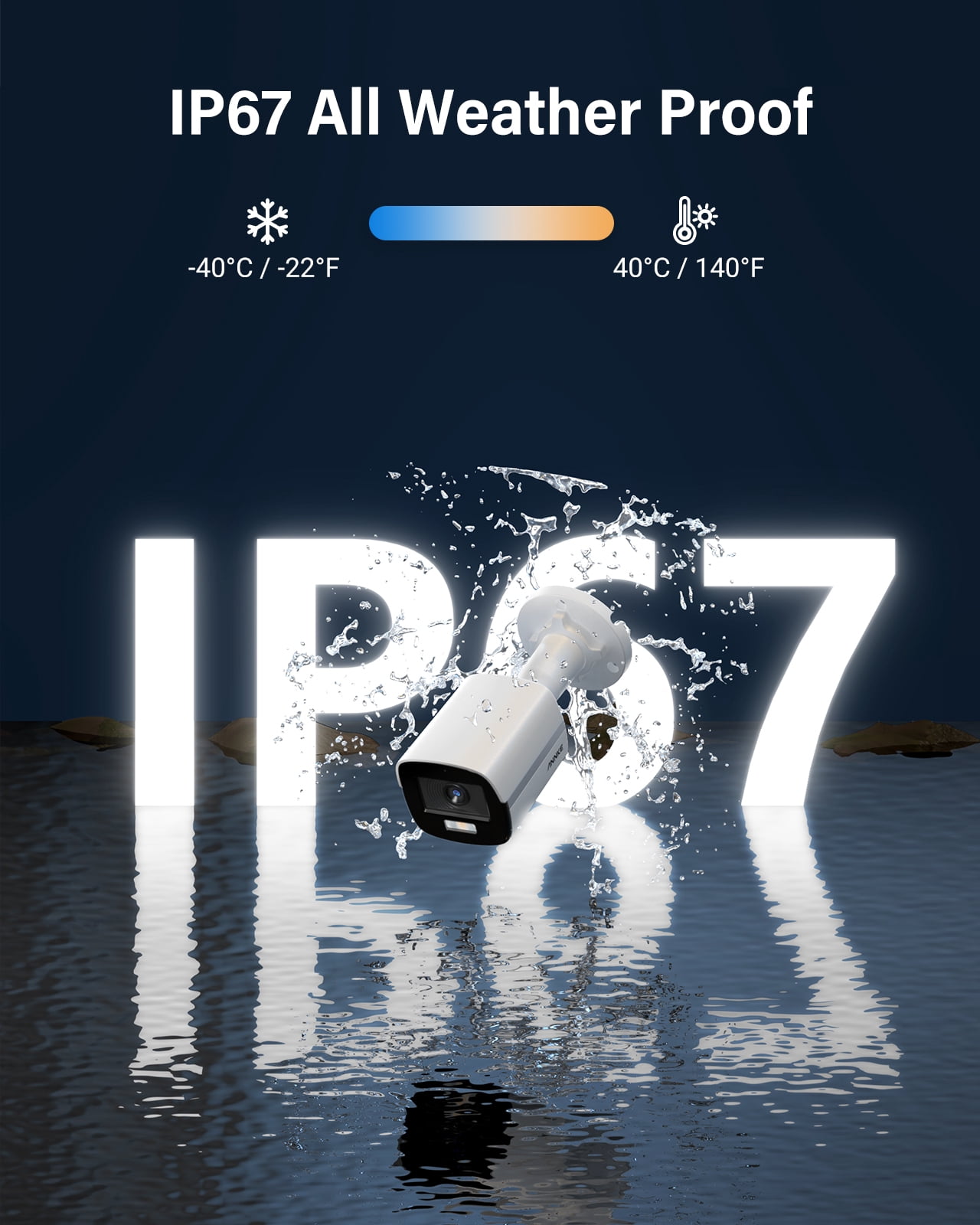

<p><b>Description:</b></p> <p>High quality imaging with 3K, 2960 × 1665 resolution</p> <p>2.8 mm fixed focal lens@F1.2</p> <p>High quality audio with audio over coaxial cable, built-in mic</p> <p>Up to 20 m white light distance for bright night imaging</p> <p>One port for four switchable signals (TVI/AHD/CVI/CVBS)</p> <p>Water and dust resistant (IP67)</p> <p>High quality audio with audio over coaxial cable, built-in mic"</p> <p><b>Camera:</b></p> <p>Image sensor:3K CMOS Image sensor</p> <p>Video Resolution: 2960 (H) × 1665 (V) (16:9)</p> <p>Signal System: PAL/NTSC</p> <p>Frame Rate: "TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps</p> <p>AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps</p> <p>CVI: 4 MP@25 fps/30 fps</p> <p>CVBS: PAL/NTSC"</p> <p>Lens 2.8mm</p> <p>Min.Illumination: Color:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light</p> <p>Angle of View: Horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°</p> <p>Supplement Light type: 1 white Light</p> <p>Supplement Light Range: white Light : Up to 20 m</p> <p>Wide Dynamic Range: Digital WDR</p> <p>Noise reduction: 2D-DNR</p> <p>Audio: Built-in mic</p> <p>Day/Night: ModeColor</p> <p>Video Output: BNC, switchable TVI/AHD/CVI/CVBS</p> <p>General:</p> <p>Housing: Plastic</p> <p>Color: White</p> <p>Operating Power: 12 VDC ± 25%</p> <p>Consumption: Max. 2.9 W</p> <p>Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C</p> <p>Indoor/Outdoor: Indoor/Outdoor</p> <p>Weatherproof Rating: IP67</p> <p>Dimension (L x W x H): 161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")</p> <p>Weight: Approx. 238 g (0.52 lb.)</p>
| Has night vision | Y |
|---|---|
| Resolution | 3K |
| Field of view | 129 º |
| Rec location | Indoor and Outdoor |
| Power type | Corded Electric |
| Brand | ANNKE |
| Camera type | Bullet Surveillance Cameras |
| Lens type | Fixed Lens |
| Number of cameras | 4 |
| Compatibility | ANNKE or third-party DVRs |
| Color | White |

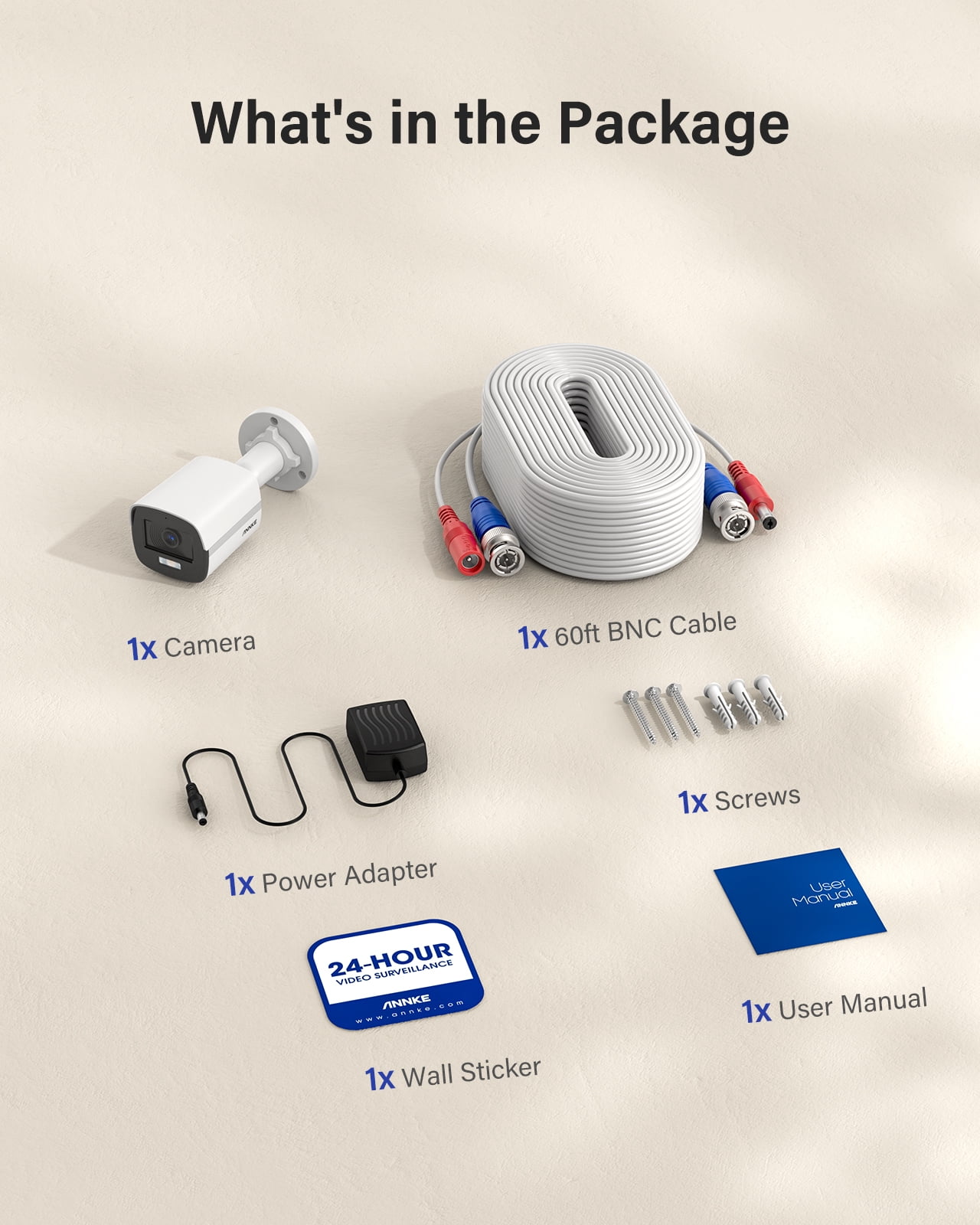

| Accessories included | Cable & Adapter |
| Number of megapixels | 3 MP |
| Assembled product height | 4.13 in |
| Assembled product weight | 1.65 lb |
| Inputs & outputs | BNC, switchable TVI/AHD/CVI/CVBS |
| Connector type | HDMI |
| Has written warranty | No |
| Model | AU-CR1CY0102 |
