Apevia TFX-PFC400W TFX 400W Fixed Cables, Full Range Active PFC Computer Power Supply

The TFX-PFC400W power supply is a full range active PFC standard Flex-ATX unit that will fit in most small TFX form-factor cases. Has enough power output and connectors to run systems up to 400 watts, being used for versatile compact computing applications. Includes various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP).

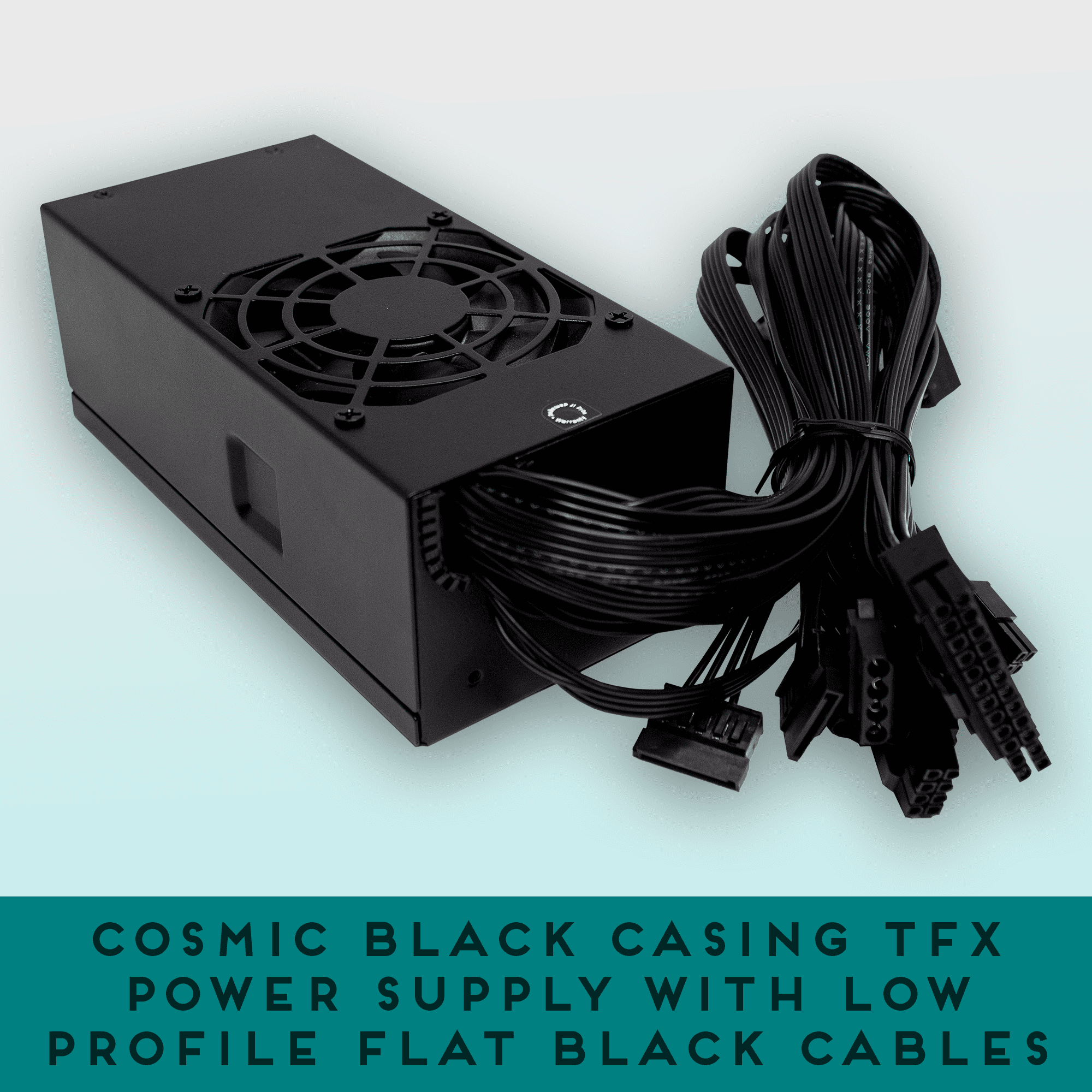

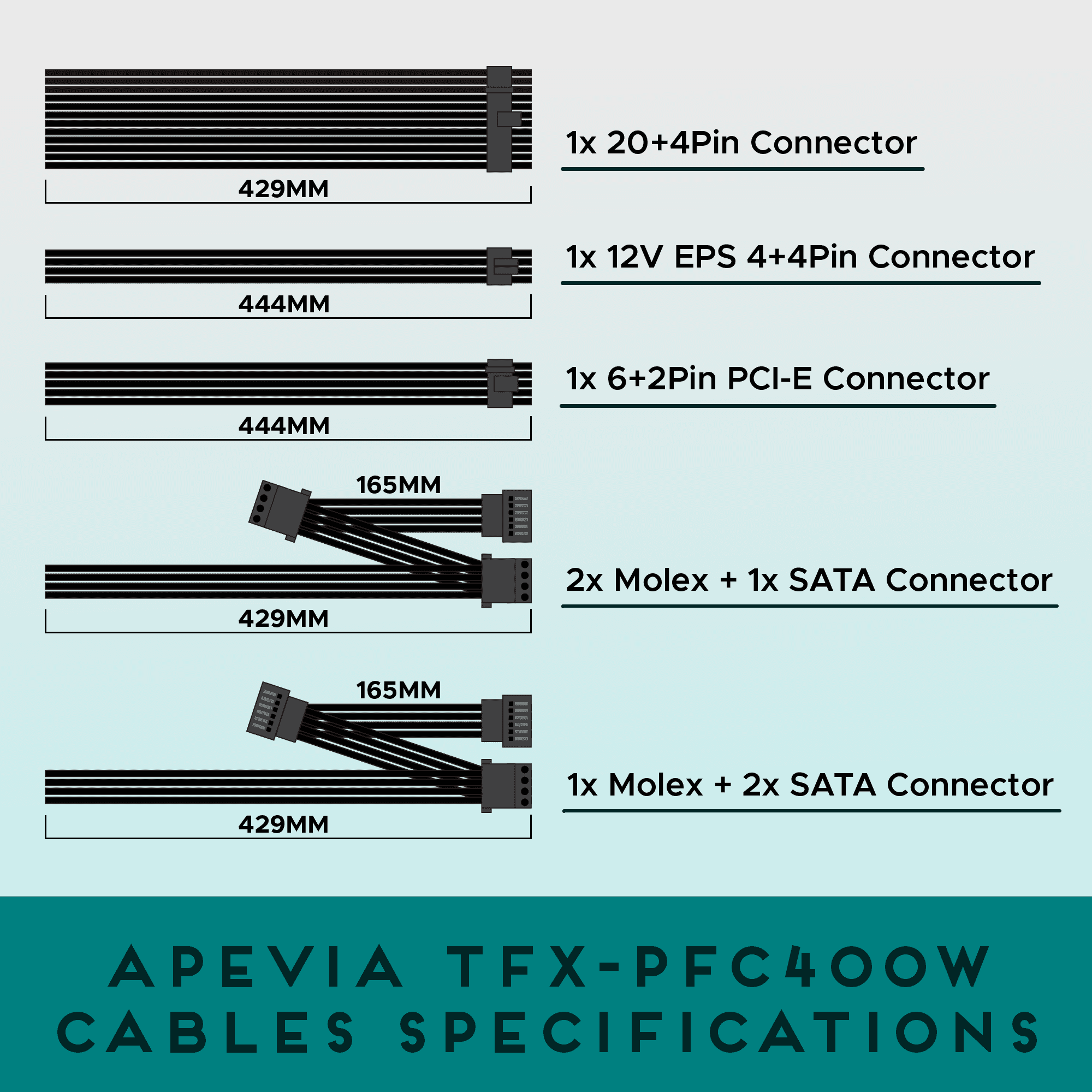

• APEVIA TFX-PFC400W Standard 400W TFX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 400W. Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 1x 6+2 PCIE, 3 x SATA, 3 x 4pin Molex

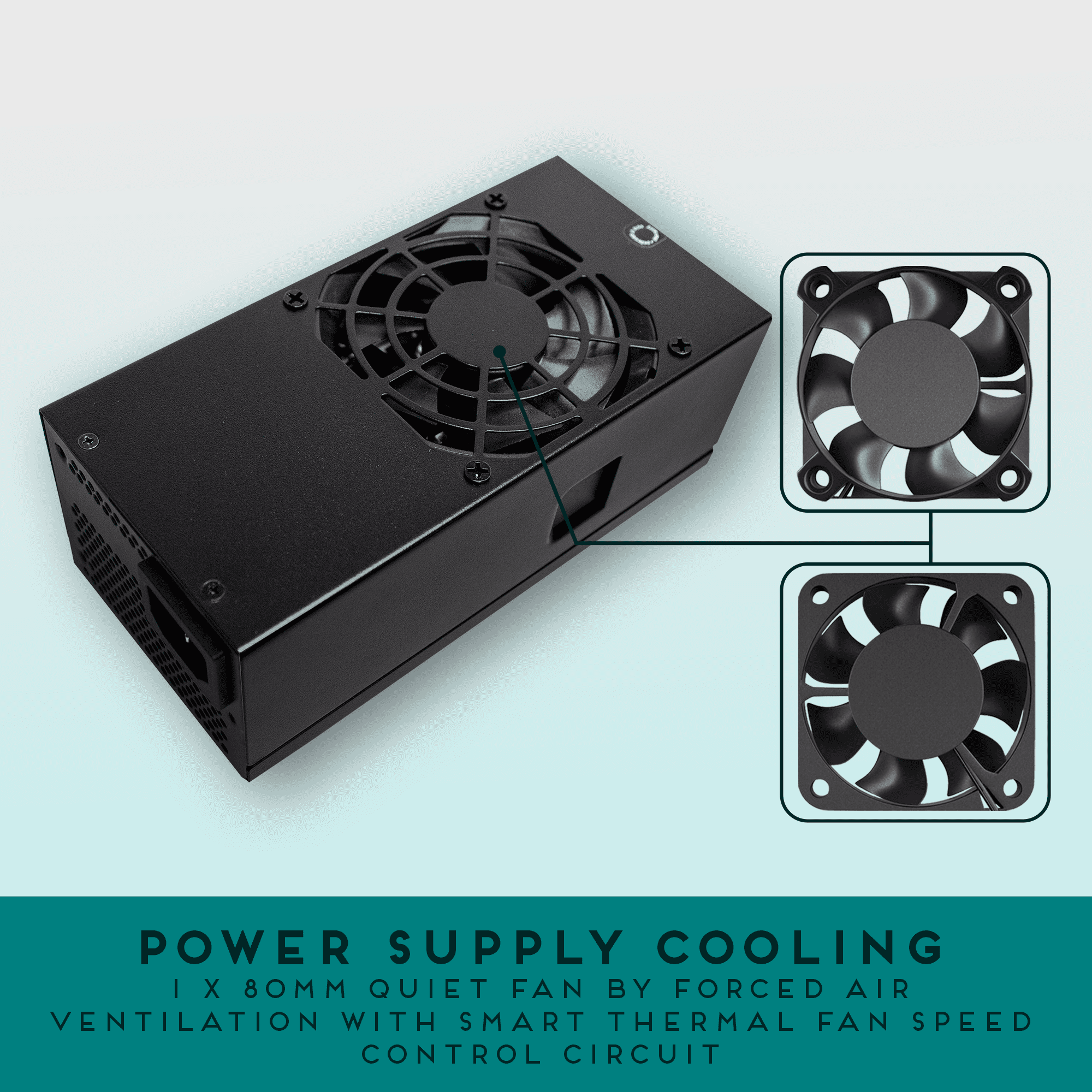

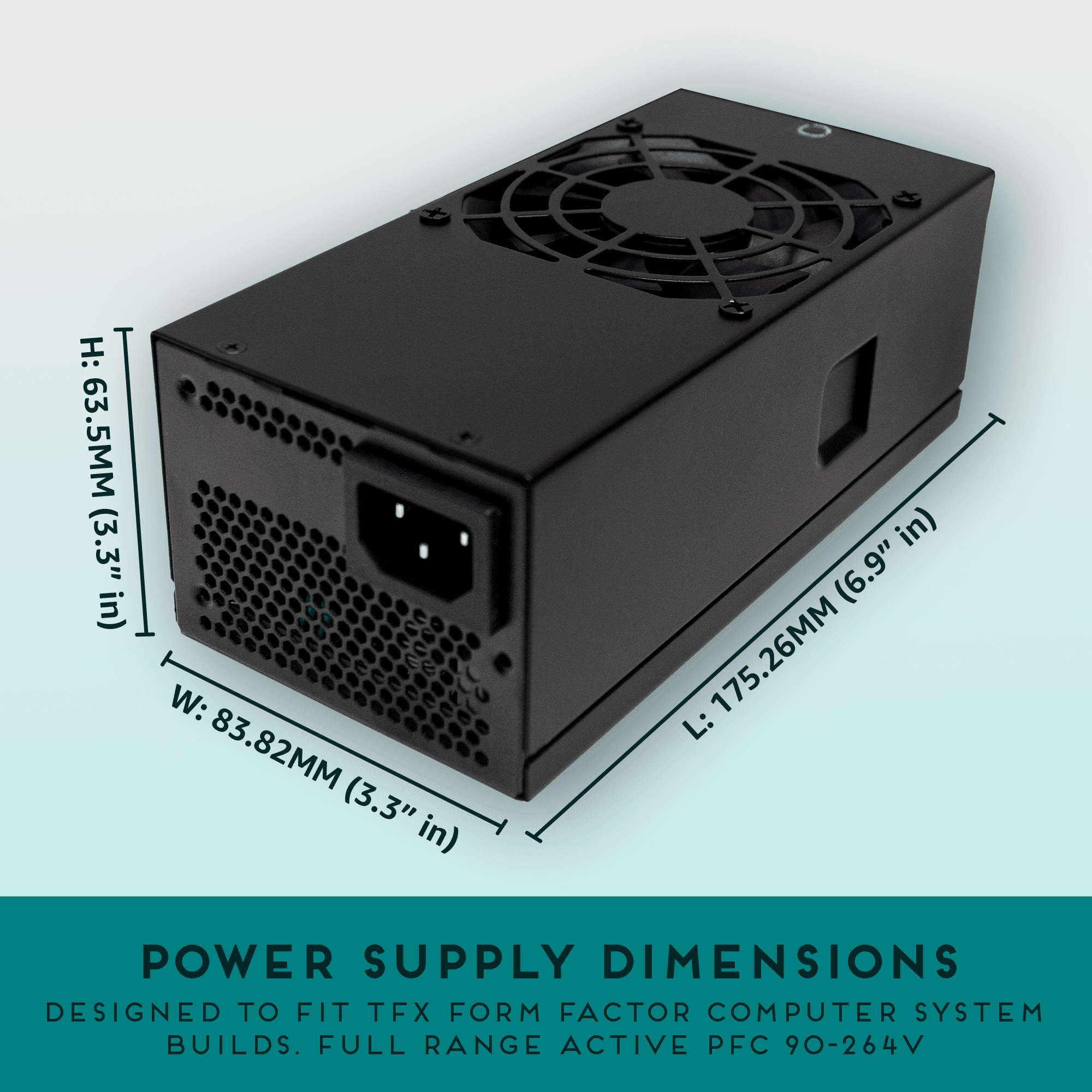

• Cooling: Forced Air Ventilation by 1 x 80mm Fan. Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP). Dimension: 175.26mm x 83.82mm x 63.5mm (6.9" x 3.3" x 2.5") - L x W x H
• Output: +3.3V@12A, +5V@12A, +12V@28A, -12V@0.3A, +5Vsb@2.5A
• IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on. IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
• IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
