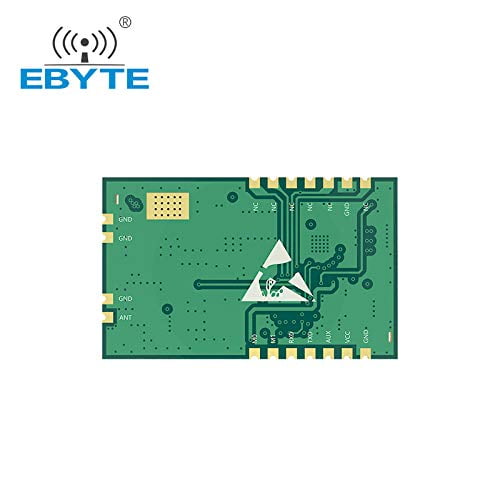

LoRa 230MHz TCXO 30dBm SMD Wireless Transceiver E22-230T30S IPEX Stamp Hole 1W Long Distance Transmitter and Receiver

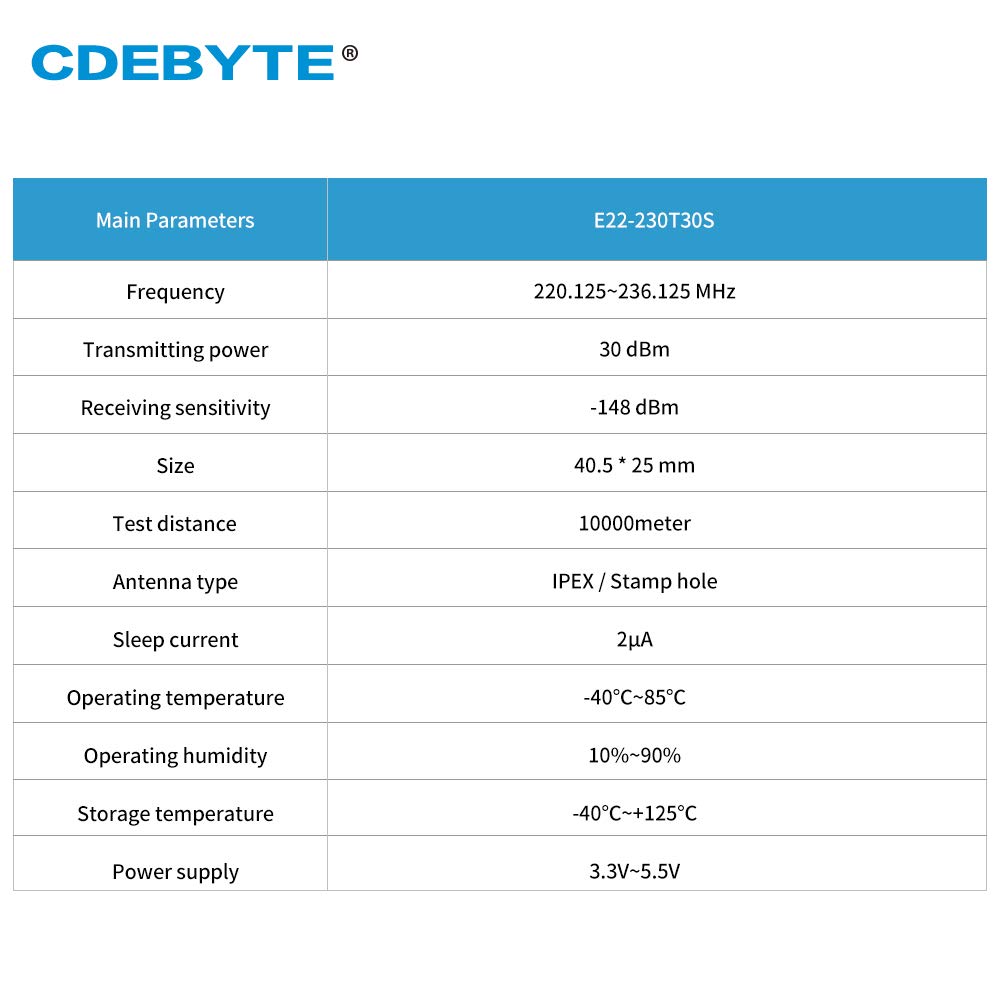

[Frequency] : 220~236MHz<br> [Power] : 30dBm<br> [Distance] : 10km<br> [Interface] : UART<br> [Introduction] : E22-230T30S is a wireless serial port module (UART) based on RF chip. It has multiple transmission modes, LoRa spread spectrum technology, TTL level output, compatible with 3.3V and 5V IO port voltage. With PA and LNA, the power is 1W based on originally module, the receiving sensitivity is improved accordingly.<br><br> LoRa direct sequence spread spectrum technology will bring longer communication distance, and has the advantages of concentrated power density and strong anti-interference ability. It is different from FSK and GFSK. The module has data encryption. Data transmitted over the air, with randomness, makes data interception meaningless through strict encryption and decryption algorithms.<br><br> The module reserves multiple IO interfaces to provide custom development services.It supports packet length setting and also supports different real-time and data packets.

• Support new generation LoRa technology the power consumption of hardware is reduced by 40%,and the power consumption of software is reduced by 35%; for the same power consumption, the transmission power is increased by 80%;
• Communication distance tested is up to 10km;Maximum transmission power of 1W, software multi-level adjustable;Support the global license-free ISM 230.125MHz band;Support air date rate of 0.3kbps~15.6kbps;Low power consumption for battery supplied applications;Support 3.3V~5.5V power supply, power supply over 3.3V can guarantee the best performance;Industrial grade standard design, support -40~85C for working over a long time;
• Support RSSI for evaluating signal quality, improving communication network, and ranging;Support LBT for monitoring channel environmental noise before sending data, and for improving communication.

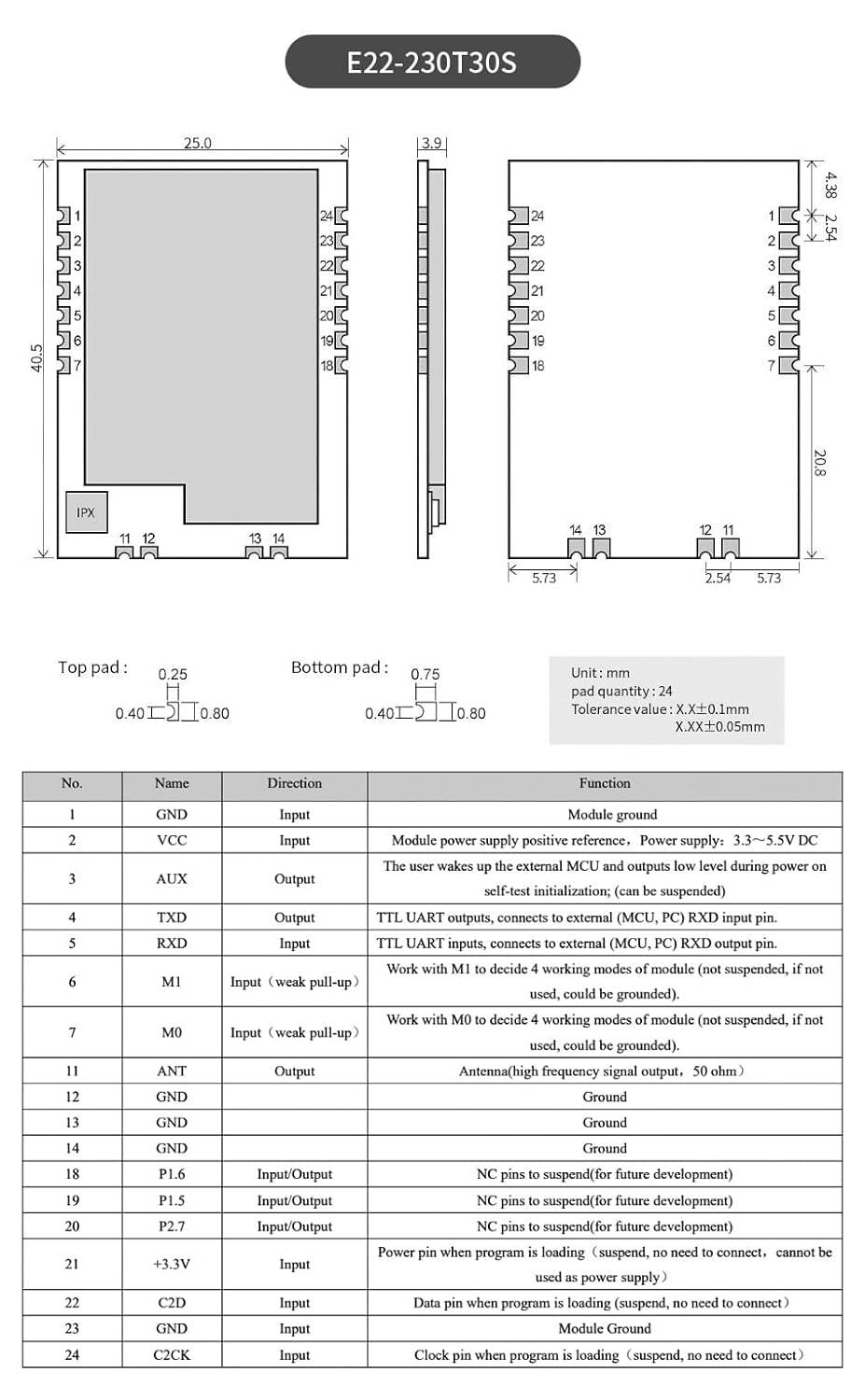

• IPEX and stamp hole optional, good for secondary development and integration
• Application :1. Home security alarm and remote keyless entry; 2. Smart home and industrial sensors; 3. Wireless alarm security system; 4. Building automation solutions; 5. Wireless industrial-grade remote control; 6. Health care products; 7. Advanced Meter Reading Architecture(AMI); 8. Automotive industry applications.
