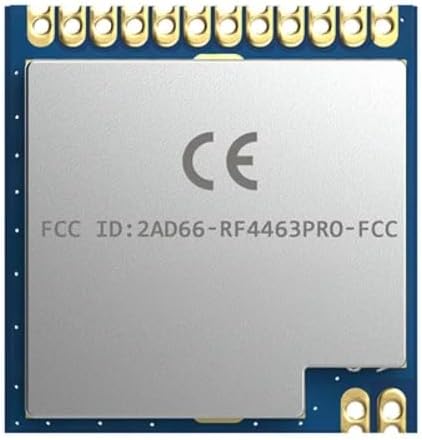

RF4463PRO 100mW 1400m Distance SPI Si4463 Anti-Interference Wireless RF Transmitter Receiver 915Mhz x 10 PCS

Package: RF4463PRO x 10 PCS ( 915MHz ) FeaturesFrequency Range: 915 MHZSensitivity up to -126 dBmMaximum output power: 20dBm10mA@receiver modeData transfer rate:0.1-1000 kbpsFSK,GFSK and OOK Modulation mode1.8-3.6 V Power supplyUltra-low consumption shutdown modeDigital received signal strength indicator (RSSI)Timed wake-up functionExcellent antenna match circuit and bi-direction communicationConfigurable packet structurePreamble detection64/128byte transmit and receive data register(FIFO)Low-battery detectionTemperature sensor and 8-bit analog-to-digital convertersOperating Temperature Range:-40 ~ + 85°CIntegrated voltage regulatorFrequency hoppingPower-on reset functionBuilt-in crystal adjustment function ApplicationRemote controlRemote meter readingHome security alarm and remote keyless entryindustrial controlhome automation remote sensingindividual data recordstoys controlsensor networktire pressure monitoringhealth monitoringwireless PC peripheralstag reading and writing

• RF4463PRO adopts RF transceiver Si4463, which is a highly integrated wireless ISM band transceiver chip.
• The features of high sensitivity (-126 dBm), +20 dBm output power, low current consumption, 10PPM crystal, and good RF matching circuit make this module work well in hot/cold environment with reliable communication and long distance
