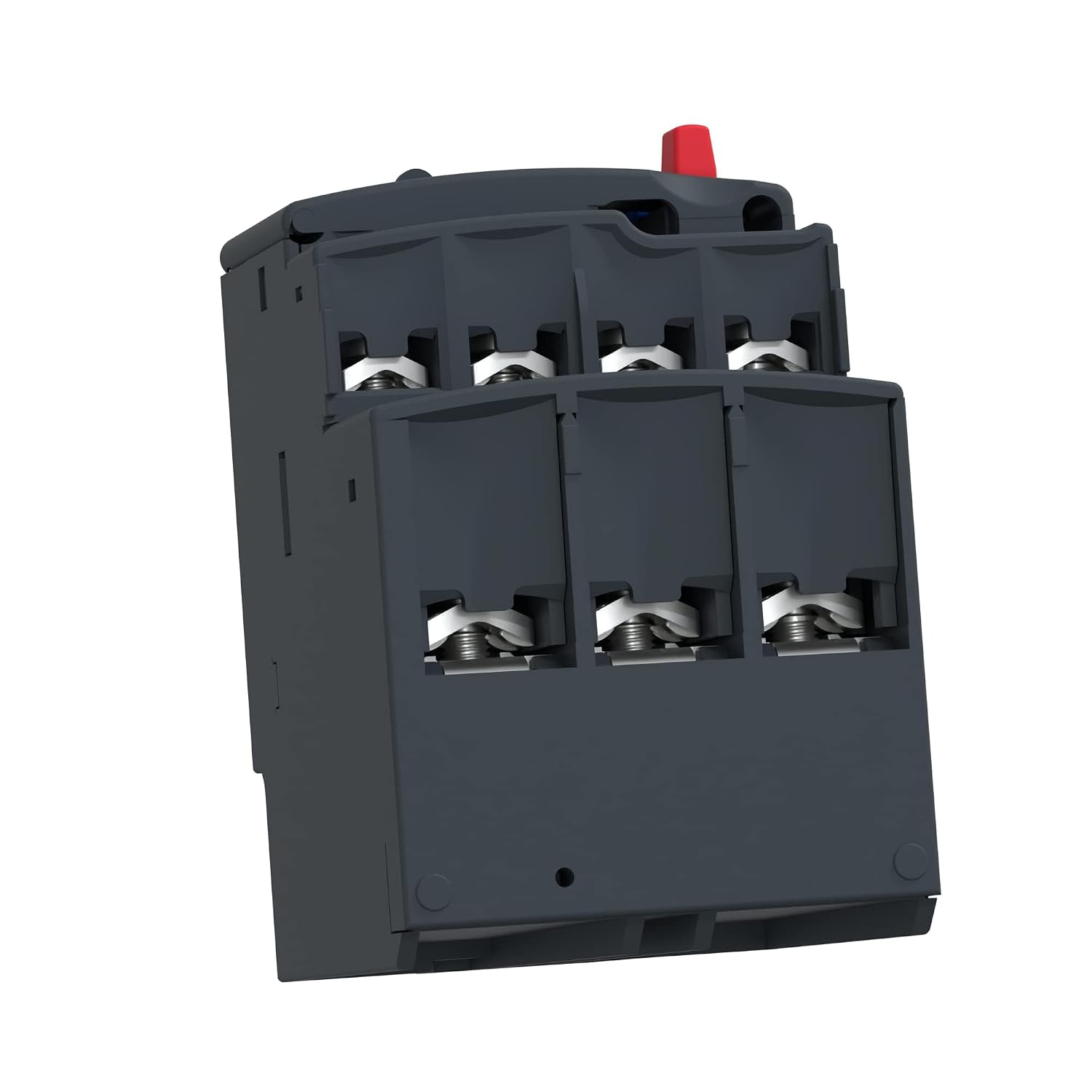

Schneider Electric Ovrload Relay, 16 To 24A, 3P, Class 10, 690V
Product details
| Management number | 211061246 | Release Date | 2026/04/04 | List Price | $19.20 | Model Number | 211061246 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
' Overload Relay, Current Range 16.0 to 24.0A, For Use With LC1D25 thru LC1D32 Contactor, Trip Class 10, Sensing Method Bimetallic, Features Single Phase Sensitivity, Differential, Number of Poles 3, Height 3.62 In., Depth 2.75 In., Width 1.77 In., Standards UL, CSA, ATEX D 94/9/CE, GOST '
- Price For: Each Sensing Method: Bimetallic Trip Class: 10 Item: Overload Relay Number of Poles: 3 Standards: UL, CSA, ATEX D 94/9/CE, GOST Height: 3.62" Features: Single Phase Sensitivity, Differential Depth: 2.75" For Use With: LC1D25 thru LC1D32 Contactor Current Range: 16.0 to 24.0A Width: 1.77" Country of Origin (subject to change): France
| Model | LRD22 |
|---|---|
| Wattage | 11.00 |
| Brand Name | Schneider Electric |
| Unit Count | 1 Piece |
| Part Number | LRD22 |
| Coil Voltage | 690 Volts |
| Contact Type | Normally Open |
| Manufacturer | SCHNEIDER ELECTRIC |
| Mounting Type | contactor mount |
| Connector Type | Screw |
| Current Rating | 24 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Alloy |
| Specification Met | UL |
| Contact Current Rating | 24 Amps |
| Maximum Switching Current | 24 Amps |
| Global Trade Identification Number | 03389110346848 |
