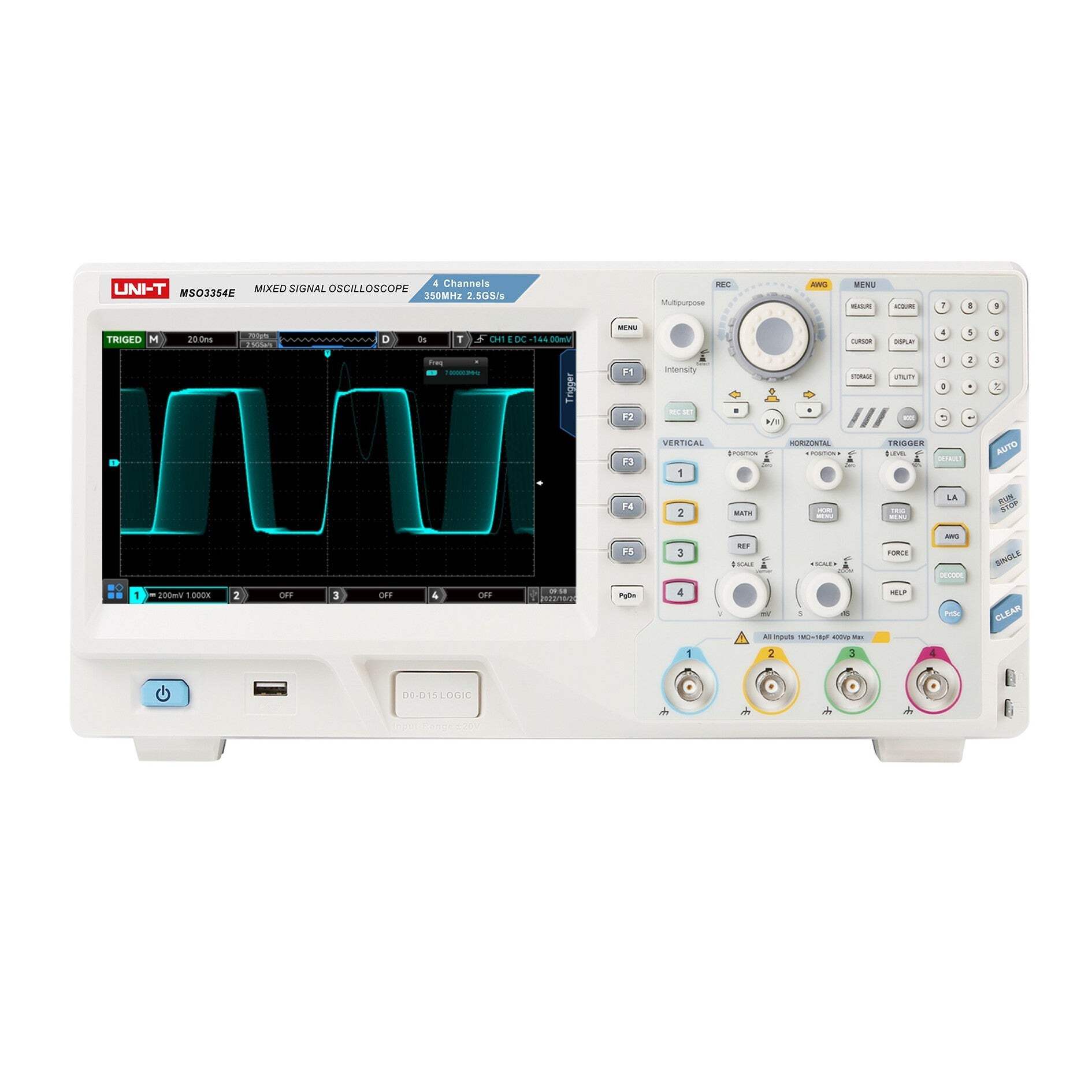

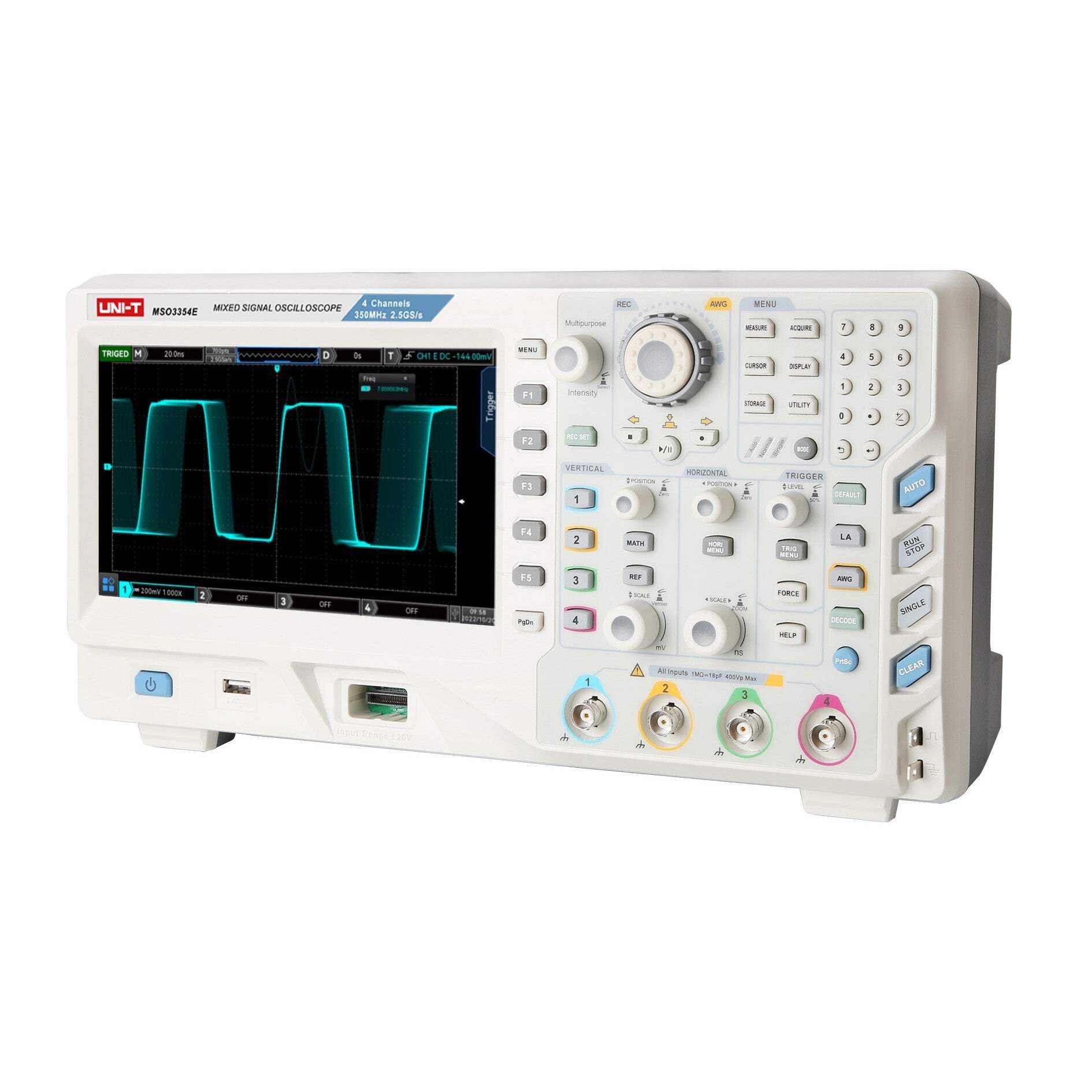

UNI-T MSO3354E 350MHz 4+16Ch MSO Mixed Signal Digital Oscilloscope

Experience Excellence in Measurement with the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO) MSO3354E Oscilloscope LA Logic Analyzer<p><strong>The UNI-T MSO3354E Mixed Signal Oscilloscope (MSO)</strong> is your gateway to multifunctionality, high performance, and unmatched value, all powered by UNI-T's cutting-edge Ultra Phosphor technology. Designed with engineers in mind, this oscilloscope seamlessly combines ease of use, exceptional technical indicators, and a wide array of functional features, enabling you to complete your measurement tasks efficiently. Whether you're working in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, or R &amp; D / education, the MSO3354E is your ideal companion.</p>UNI-T MSO3354E Mixed Signal Oscilloscope Top Specifications:<ul> <li><strong>Bandwidth:</strong> 350MHz</li> <li><strong>Analog Channels:</strong> 4</li> <li><strong>Digital Channels:</strong> 16 (UT-M15 Logic probe included)</li> <li><strong>Real-Time Sample Rate:</strong> 2.5GSa/s</li> <li><strong>Max. Memory depth:</strong> 250Mpts</li> MSO3354E Oscilloscope Maximum Memory Depth <li><strong>Waveform Capture Rate:</strong> 200,000wfms/s</li><li><strong>Display:</strong> 8in Multi-point Capacitive Touchscreen</li></ul>Key Features and Benefits of the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO):<ul> <li><strong>Impressive 350MHz Bandwidth:</strong> When assessing an oscilloscope, like the UNI-T MSO3354E Mixed Signal Oscilloscope, the bandwidth is a critical consideration. This oscilloscope boasts a substantial 350MHz bandwidth, ensuring you're equipped to tackle a wide range of devices and circuits. Adhering to the industry-standard "Rule of Five," this oscilloscope provides five times the bandwidth needed for your fastest signals, making it suitable for applications up to 70MHz and below.</li> <li><strong>4 Analog Input Channels:</strong> With its four analog input channels, the UNI-T MSO3354E Mixed Signal Oscilloscope empowers you to measure multiple signals simultaneously. This capability is invaluable for debugging circuits with multiple signals and is particularly useful in serial protocol work, enabling the monitoring of clock signals alongside data lines, enhancing video signal analysis, and more.</li> MSO3354E Oscilloscope Bode Plot <li><strong>1M pts Enhanced FFT Analysis:</strong> Dive deep into frequency domain measurement with the UNI-T MSO3354E Mixed Signal Oscilloscope's comprehensive FFT analysis capabilities. Enjoy full-screen, split-screen, and waterfall chart views for swift exploration. Leverage FFT for uncovering harmonic content, detecting distortion in measurement systems, analyzing noise in DC power supplies, and exploring vibration analysis.</li> <li><strong>Extensive Trigger Functions:</strong> Achieve precision in your measurements with an extensive array of advanced trigger and bus trigger functions. From edge and pulse width triggers to video, ramp, runt pulse, and more, the UNI-T MSO3354E Mixed Signal Oscilloscope ensures accurate and rapid capture and display of your signal of interest.</li> <li><strong>Enhanced Area Trigger:</strong> Elevate your signal capture capabilities with the area trigger, which seamlessly complements basic, advanced, and protocol triggers, enabling you to efficiently capture various occasional and complex characteristic signals.</li> <li><strong>Efficient Pass/Fail Analysis:</strong> The pass/fail test function simplifies quality assurance and production tasks. Configure a standard waveform, establish high and low limits, and let the UNI-T MSO3354E Mixed Signal Oscilloscope identify signals that fall outside these thresholds, ensuring rigorous quality control.</li> MSO3354E Oscilloscope Full Memory Hardware Decoding <li><strong>Logic Analysis Probe UT-M15:</strong> Streamline the analysis of digital signals with the included UT-M1</li></ul>
