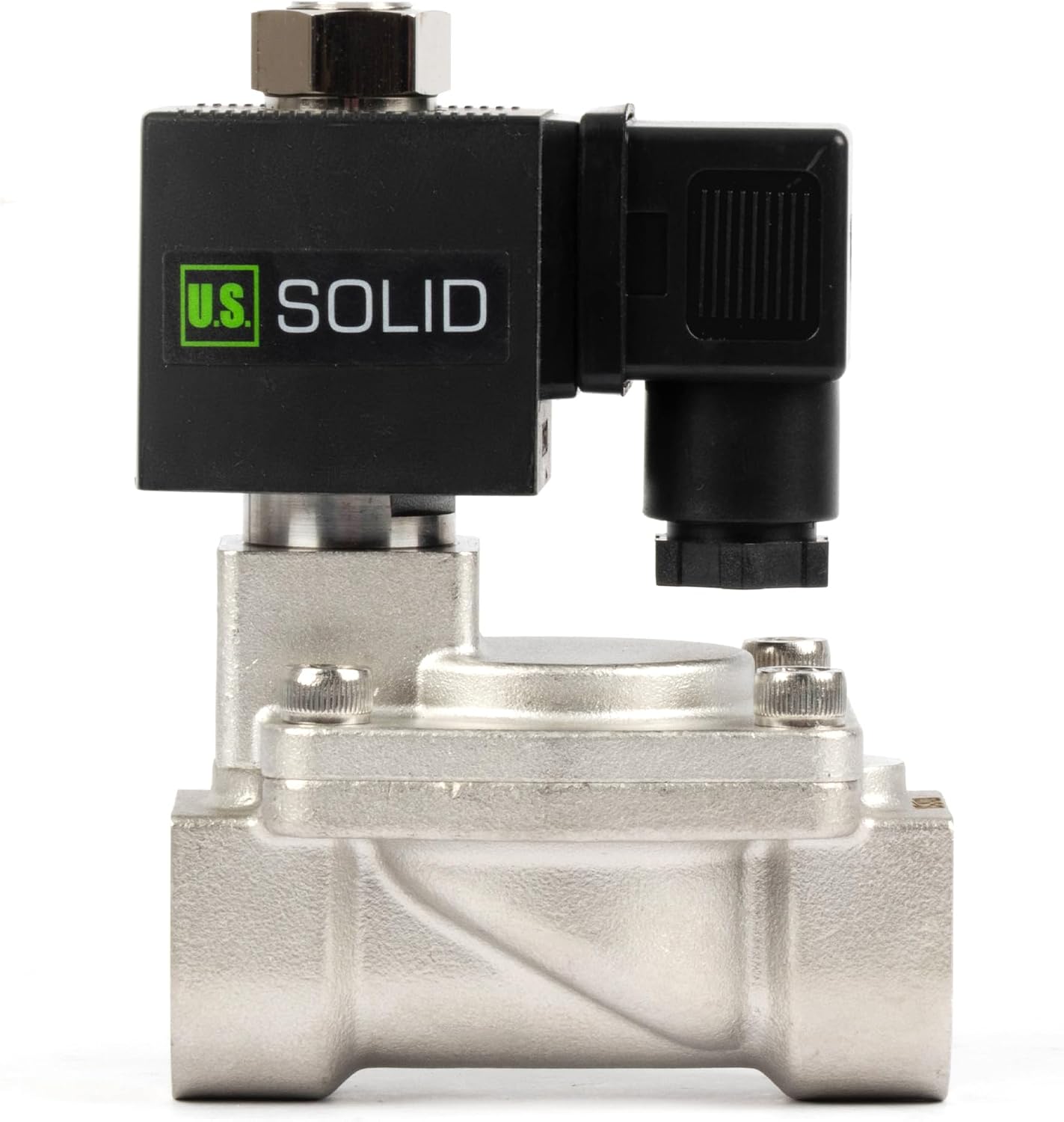

U.S. Solid Stainless Steel Solenoid Valve 3/4" - 110V 120V AC, Normally Open, 4.4-232 PSI, Pilot-Operated, Viton Seal
Product details
| Management number | 247464515 | Release Date | 2026/08/16 | List Price | $34.40 | Model Number | 247464515 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 3/4" 110V/120V AC STAINLESS SOLENOID VALVE, NORMALLY OPEN: Pilot-operated 304 SS diaphragm valve that stays open without power and closes when energized; needs about 4.4 PSI minimum differential, handling 3/4 inch NPT lines up to 232 PSI
- HIGH-FLOW, 1,000,000-CYCLE DESIGN: The pilot-operated diaphragm moves large fluid volumes efficiently across a wide 4.4 to 232 PSI (0.3-16 bar) range and is tested to one million cycles with low power draw for long, dependable service
- 304 STAINLESS STEEL BUILD: A 304 stainless steel body with a VITON seal, SUS304 armature, and a coil rated to 180°C resists rust, heat, and pressure far better than brass for reliable, leak-free service in tough media
- 110V/120V AC, NO TRANSFORMER: Wires directly to 110-120V AC, no transformer (hardwired, no plug); controls water, light oils, and gases; add an inline filter for dirty media to prevent clogging
- INSTALL & SAFETY: Mount in any orientation with the flow arrow downstream; keep inlet pressure above outlet. Continuous-duty rated, but run no more than 8 hours at a time for long life. Made of lead-free 304 stainless steel
| UPC | 888107126607 |
|---|---|
| ASIN | B0G12T64HH |
| Size | 0.75 Inch |
| Brand Name | U.S. Solid |
| Unit Count | 1 Count |
| Valve Type | Solenoid Valve |
| Thread Size | 0.75 inches |
| Thread Type | NPT |
| Manufacturer | U.S. Solid |
| Model Number | 0888107126607 |
| Material Type | Stainless Steel |
| Exterior Finish | Stainless Steel, Brass |
| Number of Packs | 1 |
| Number of Ports | 2 |
| Maximum Pressure | 232 psi |
| Included Components | 1 x valve |
| Inlet Connection Size | 0.75 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.75 inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | USS-YSV00199 |
